What Is a Romex Trass Bed System?
Introduction
Maintaining the integrity of natural stone in the Pacific Northwest requires more than just skilled masonry. The climate in Vancouver, the North Shore, and the Sea to Sky Corridor presents unique challenges. High rainfall, frequent freeze-thaw cycles, and the risk of efflorescence can quickly degrade a standard stone installation.
At Goliath Stoneworks, we specialize in high-end Hardscape Installations that are built to last a lifetime. To achieve this, we utilize the Romex Trass Bed System. This advanced bedding technology is a cornerstone of our premium service. It ensures that your investment in natural stone remains beautiful, stable, and free from the common failures of traditional methods.
Advanced Paving Foundations

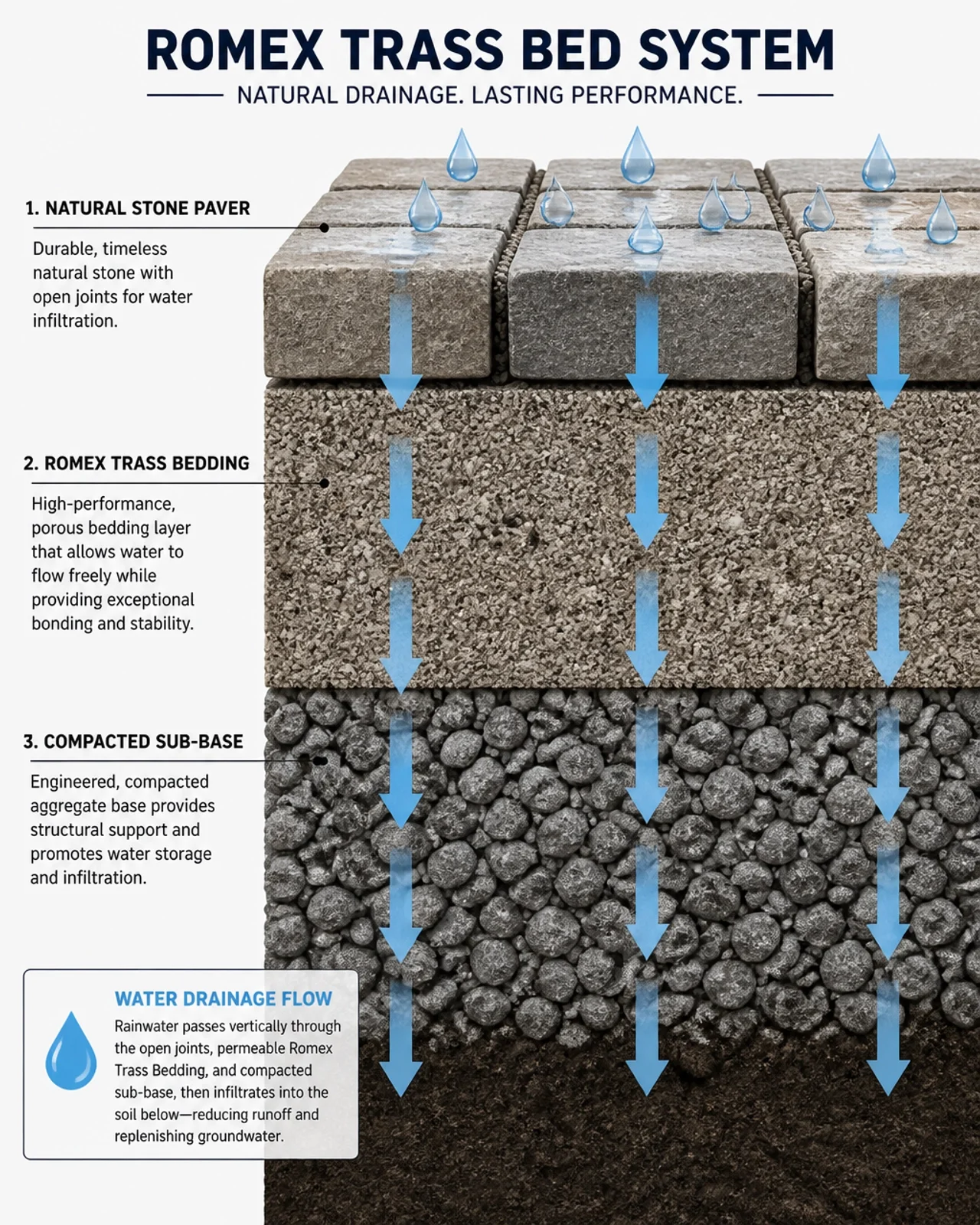

A Romex Trass Bed is a bonded, highly water-permeable bedding system. It is specifically engineered for natural stone slabs and concrete pavers. Unlike traditional sand or gravel bases that can shift over time, this system creates a rigid, bound foundation that remains fully drainable.
The system combines a cementitious binding agent with specialized “trass” minerals. When mixed with specific aggregates like ASTM #9 stone, it forms a high-strength “drainage mortar.” This mortar replaces the traditional concrete mud slab, providing the strength of concrete with the drainage capabilities of gravel.
The Trass Mineral Advantage
The "Trass" in the system refers to a volcanic pozzolan. This natural additive is the secret to preventing efflorescence: the unsightly white, powdery salt deposits often seen on stone surfaces.
Preventing White Stains
Efflorescence occurs when water dissolves calcium hydroxide (free lime) within standard cement. As the water evaporates, the lime crystallizes on the stone surface. The volcanic trass in the Romex system chemically binds this free lime during the curing process. By neutralizing the lime, the system virtually eliminates the source of efflorescence.</p>
Reducing Discolouration
Traditional bedding can trap moisture, leading to waterlogging. This often causes natural stones to darken or develop "picture framing” around the edges. The high permeability of the Trass Bed ensures that water moves vertically through the system and away from the stone, preserving the original aesthetic of your Natural Stone Patios.
Climate-Resistant Engineering
Vancouver’s weather is notoriously difficult for outdoor stonework. The Romex Trass Bed System is designed to handle these environmental stressors with ease.
Superior Frost Resistance
Standard mortar beds can trap water. When that water freezes, it expands, causing the stone to heave or the joints to crack. Because the Romex system is highly permeable, water does not stay trapped in the bedding layer. It drains through the open-structured mortar, allowing ice to expand into the air voids without exerting pressure on the stone. This makes the system exceptionally frost-resistant.
De-Icing Salt Durability
In the Sea to Sky Corridor, de-icing salts are a winter necessity. These salts can be devastating to standard concrete and masonry. The Romex system is specifically formulated to resist de-icing salt damage, ensuring that your walkways and driveways remain intact despite harsh winter maintenance.
Unparalleled Structural Strength
One of the most impressive features of the Romex Trass Bed System is its load-bearing capacity. When properly installed by the team at Goliath Stoneworks, this bonded system can handle significant weight without shifting or rutting.
Load-Bearing Performance
Vehicle Rated: The system is capable of supporting loads up to 40 tons.
No Creep or Shifting: Because the stones are bonded to the bed, they cannot move, creep, or sink under the weight of a vehicle.
Large Format Stability: Even exceptionally large natural stone slabs remain perfectly level over time.
This makes the Romex system the ideal choice for high-traffic areas, including Paving Stone Driveways and commercial walkways.
Comparison: Romex vs. Traditional Methods
System Comparison
| Feature | Traditional Sand/Gravel | Standard Concrete Slab | Romex Trass Bed System |
|---|---|---|---|
| Stability | Moderate (can shift/sink) | High (rigid) | Exceptional (bonded & rigid) |
| Drainage | High | None (requires slope/drains) | Exceptional (permeable) |
| Efflorescence Risk | Low | High | Minimal (Trass minerals bind lime) |
| Frost Resistance | Moderate | Low (prone to cracking) | High (open-structure voids) |
| Installation Speed | Fast | Slow (requires curing) | Efficient (single-layer build) |
The Goliath Stoneworks Commitment
We believe that exceptional craftsmanship requires exceptional materials. We choose the Romex Trass Bed Systems for our Natural Stone Installations because it aligns with our commitment to quality and longevity
Using this system allows us to deliver results that exceed industry standards. It provides our clients in the Greater Vancouver area and the Sea to Sky Corridor with peace of mind, knowing their outdoor spaces are protected against the elements. Our specialized team is trained in the precise application of these advanced mortars, ensuring every joint is perfect and every slab is secure.
Premium Stone Solutions
The Romex Trass Bed System is more than just a foundation; it is an investment in the long-term value of your property. By combining this technology with our expertise in Masonry and Hardscaping, we create outdoor features that stand the test of time.

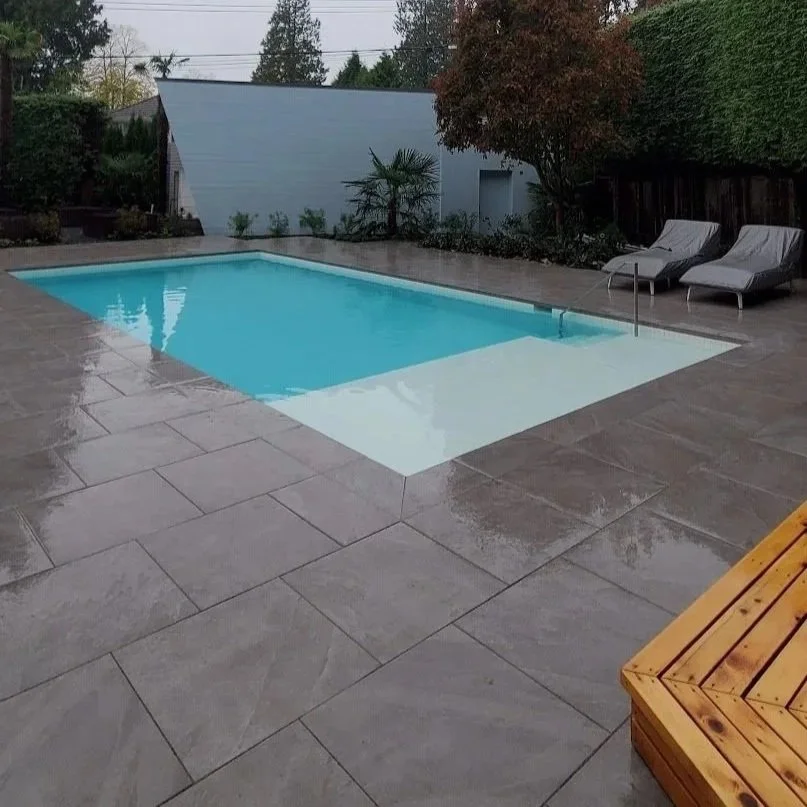

Whether you are planning a new pool deck in West Vancouver or a grand stone entrance in Shaughnessy, the foundation matters. Don’t settle for traditional methods that may fail in a few seasons. Choose a system designed for the future.
